| Marca | msi |

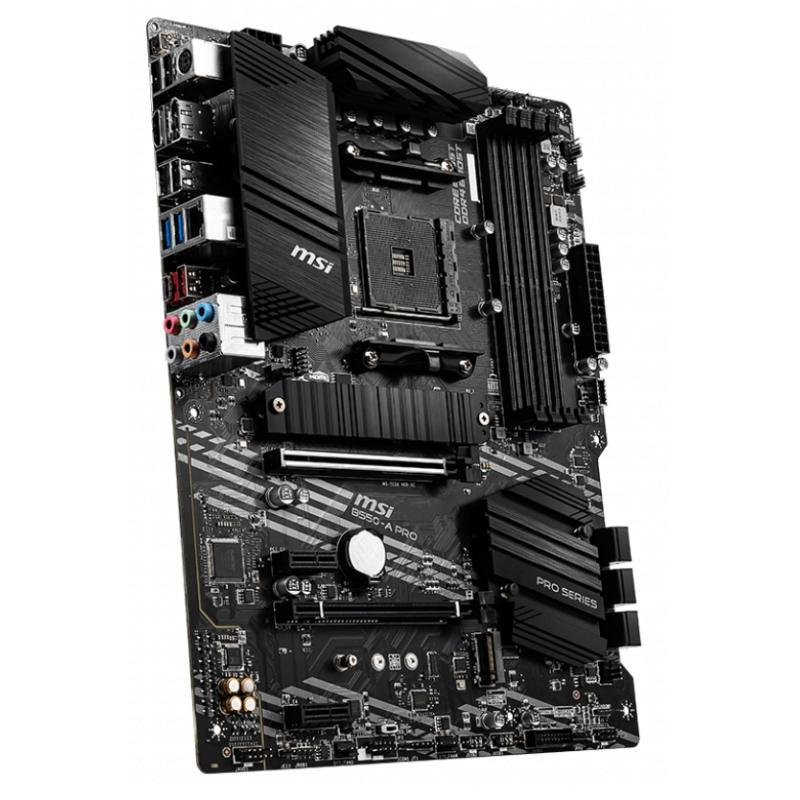

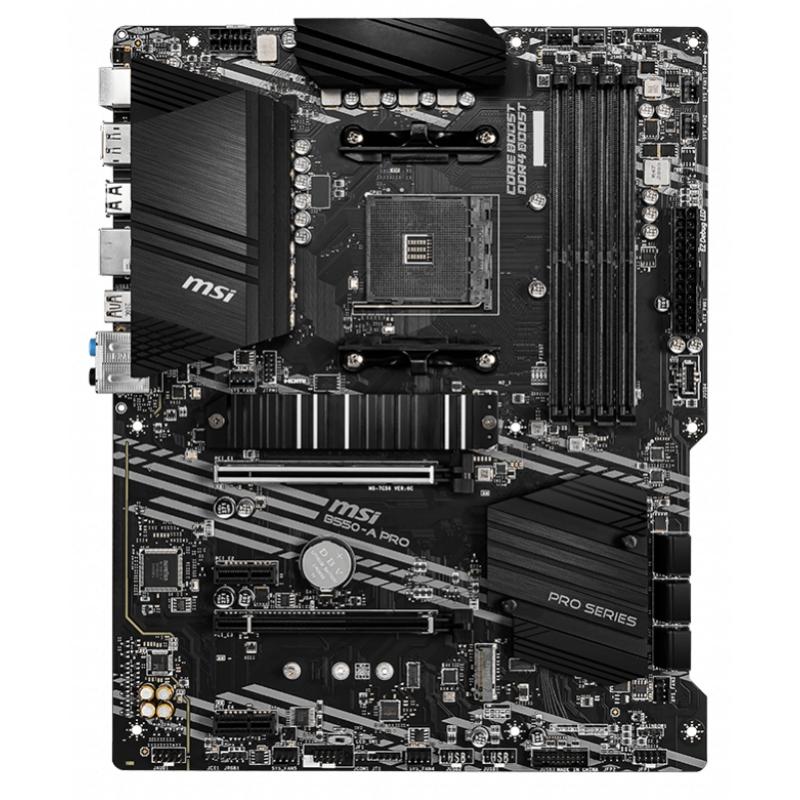

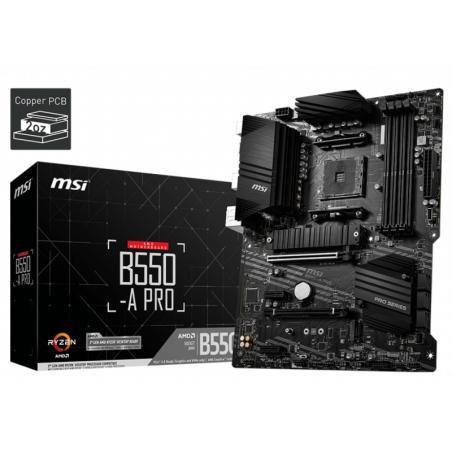

| Modelo | B550-A PRO (911-7C56-08S) |
| Plataforma | - ATX (30.5 cm x 24.4 cm) |
| Chipset | - AMD® B550 chipset |
CPU Soportados | - Soporta AMD® RYZEN™ 3ª Generación con Socket AM4 |
| Memoria | - 4 x DDR4 memory slots, soporta hasta 128GB - Soporta DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz por JEDEC - Soporta DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400 + MHz por A-XMP OC MODE) - Dual channel memory architecture - Soporta non-ECC UDIMM memory - Soporta ECC UDIMM memory (non-ECC mode) - Soporta un-buffered memory |
Slots Expansión | - 1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1) - 1 x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed - 2 x PCIe 3.0 x1 slots |
| Gráficos | - 1 x DisplayPort, 4096x2160 @ 60Hz - 1 x HDMI, 4096x2160 @ 24Hz - Memoria compartida máxima de 2GB Multi-GPU - Soporta 2-Way AMD CrossFire™ Technology |

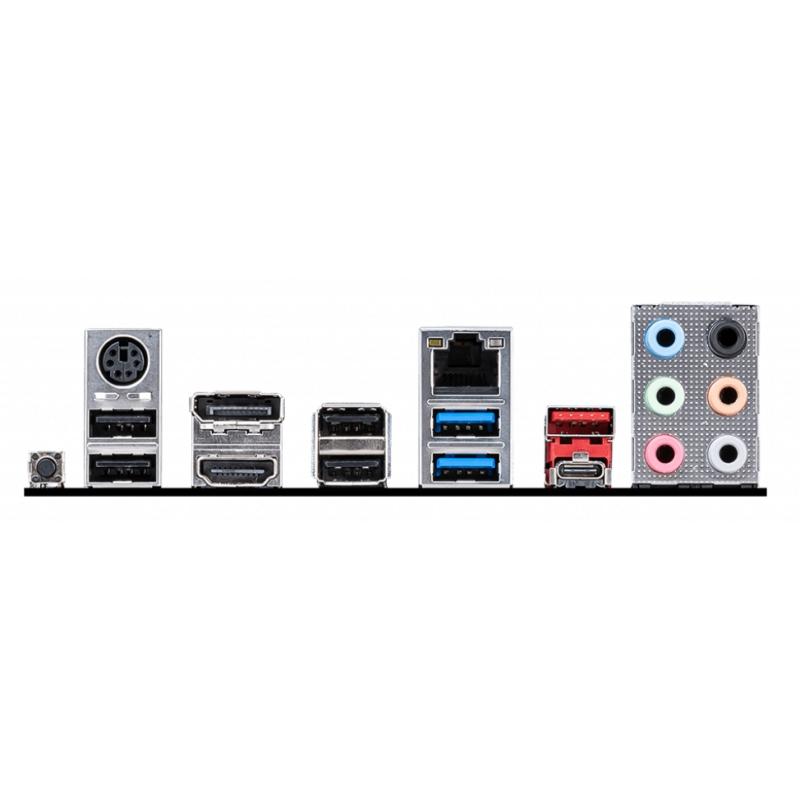

Puertos E/S, Conectores | Internos - 1 x 24-pin ATX main power - 1 x 8-pin ATX 12V power - 6 x SATA 6Gb/s - 2 x M.2 slots (M-Key) - 1 x USB 3.2 Gen 1 5Gbps Type-C - 1 x USB 3.2 Gen 1 5Gbps - 2 x USB 2.0 - 1 x 4-pin CPU fan - 1 x 4-pin water-pump fan - 6 x 4-pin system fan - 1 x Front panel audio - 2 x System panel - 1 x Chassis Intrusion - 1 x 4-pin RGB LED - 2 x 3-pin RAINBOW LED - 1 xTPM module - 1 x Clear CMOS jumper Externos - Keyboard / Mouse- DisplayPort - LAN - HD Audio Connectors - Flash BIOS Button - USB 2.0 - HDMI - USB 2.0 - USB 3.2 Gen 1 5Gbps Type-A - USB 3.2 Gen 2 10Gbps Type-A+C |
Otras Características | Almacenamiento Montaje- 6 x SATA 6Gb/s - 2 x M.2 slots (Key M) RAID - Soporta RAID 0, RAID 1 y RAID 10 para dispositivos SATA - Soporta RAID 0 y RAID 1 para M.2 NVMe RAID USB - 3 x USB 3.2 Gen 1 - 8 x USB 2.0 - 2 x USB 3.2 Gen 2 - 2 x USB 3.2 Gen 1 Red - 1 x Realtek® RTL8111H Gigabit LAN Audio - Realtek® ALC892 Codec - 7.1-Channel High Definition Audio - 9 agujeros de montaje S.O. Compatible - Soporte para Windows® 10 64-bit |
| Fecha Revisión | 02-09-2020 por MSB |
