| Marca | D-Link |

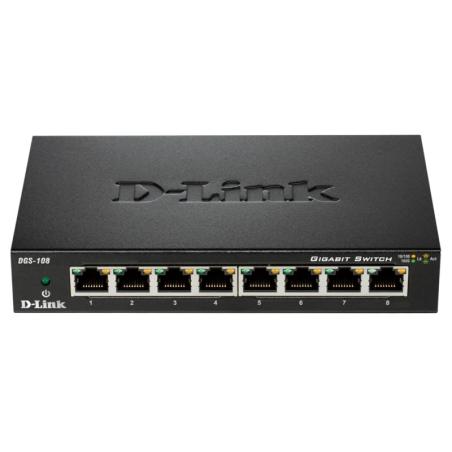

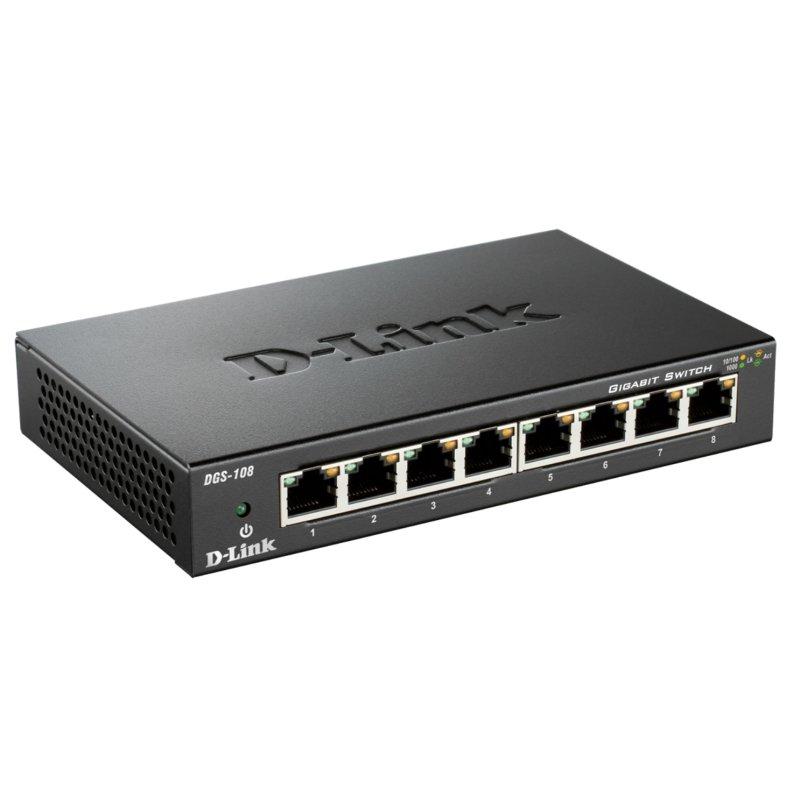

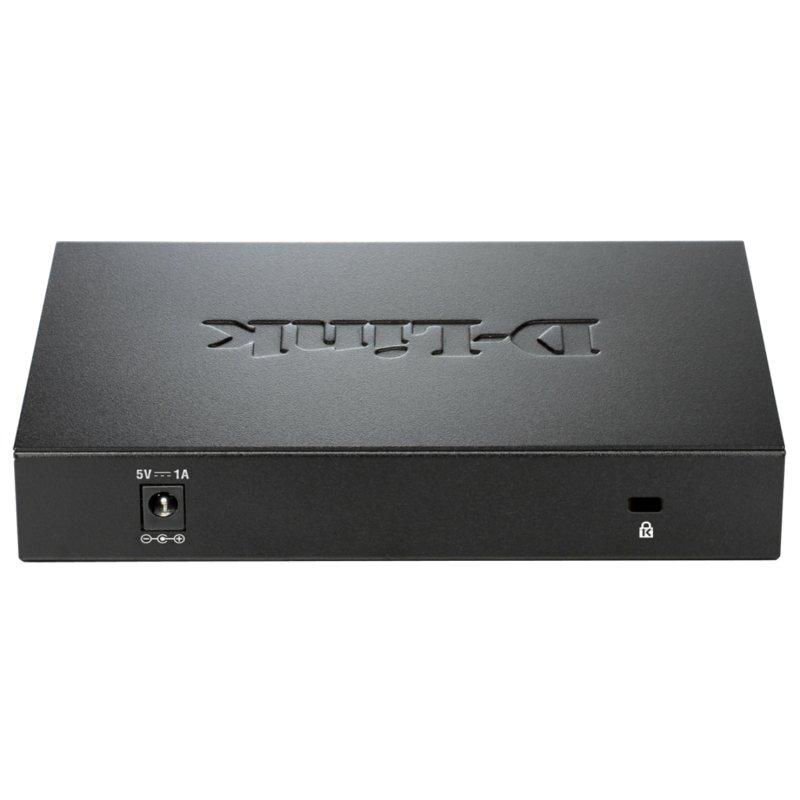

| Modelo | DGS-108 |
| Especificaciones | - 8 puertos 10/100/1000 Mbps Standards - IEEE 802.3 10BASE-T Ethernet - IEEE 802.3u 100BASE-TX Fast Ethernet - IEEE 802.3ab 1000BASE-T Gigabit Ethernet - ANSI/IEEE 802.3 NWay auto-negotiation - IEEE 802.3x flow control - IEEE 802.3az Energy Efficient Ethernet (EEE) Funciones Capa 2 - MAC address table: 8K - Auto MDI/MDIX crossover for all ports - Store-and-forward switching scheme - Full/half-duplex for Ethernet/Fast Ethernet speeds - Full-duplex only for Gigabit Ethernet speed - Jumbo Frames: 9000 Bytes Switching fabric - 16 Gbps Data Transfer Rates - Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) - Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) - Gigabit Ethernet: 2000 Mbps (full duplex) Packet Filtering/Forwarding Rates - Ethernet: 14,880 pps per port - Fast Ethernet: 148,800 pps per port - Gigabit Ethernet: 1,488,000 pps per port RAM Buffer - 128 KB LED Indicators - Per port: Link/Activity/Speed - Per device: Power Quality of Service (QoS) - Supports 802.1p QoS - 4 Queues, Strict Mode Funciones Green - Energy Efficient Ethernet (EEE) standard - D-Link Green: power saving by cable length detection - RoHS compliant Power - External 5 V/1 A Level "V" Power Adapter Power Consumption (DC input) - Standby: 0.55 watts - Maximum 2.8 watts MTBF - 2,053,751 hours Temperature - Operating: 0 to 50 ?C - Storage: -10 to 70 ?C Humidity - Operating: 10% to 90% RH non-condensing - Storage: 5% to 90% RH non-condensing Dimensions (W x D x H) - 162 x 102 x 28 mm Certifications - FCC Class B - ICES-003 Class B - CE Class B - C-Tick Class B - VCCI Class B - cUL - CB |
| Fecha de revisión | 27-12-2013 por FE4 |
