| Marca | msi |

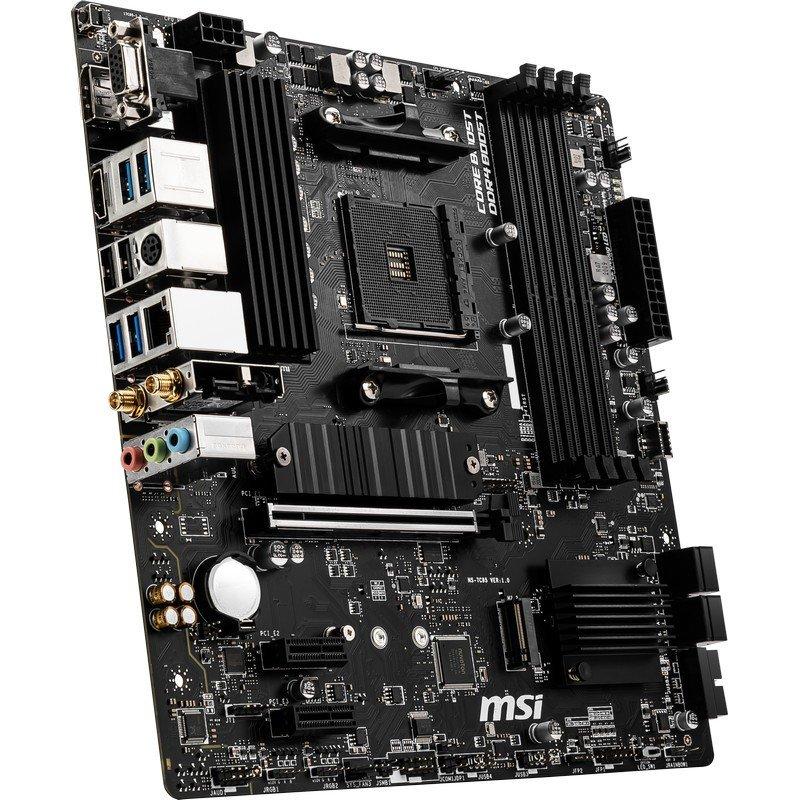

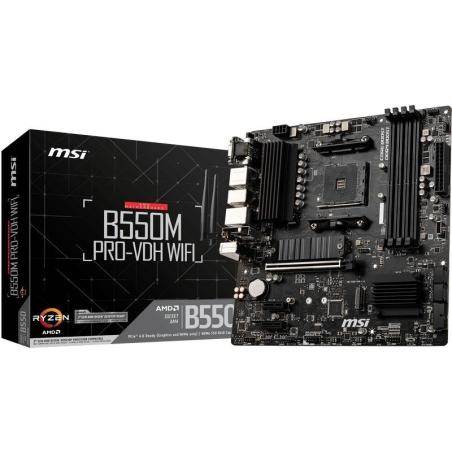

| Modelo | B550 PRO-VDH WIFI (911-7C95-008) |
| Plataforma | - mATX (24.4 cm x 24.4 cm) |
| Chipset | - AMD® B550 chipset |
CPU Soportados | - Soporta AMD® RYZEN™ 3ª Generación con Socket AM4 |
| Memoria | - 4 x DDR4 memory slots, soporta hasta 128GB - Soporta DDR4 1866/2133/2400/2667/2800/2933/3000/3066/3200 MHz por JEDEC - Soporta DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400 + MHz por A-XMP OC MODE) - Dual channel memory architecture - Soporta non-ECC UDIMM memory - Soporta ECC UDIMM memory (non-ECC mode) - Soporta un-buffered memory |
Slots Expansión | - 1 x PCIe 4.0 / 3.0 x16 slot (PCI_E1) - 2 x PCIe 3.0 x1 slots |
| Gráficos | - 1 x VGA, 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz - 1 x DisplayPort, 4096x2160 @ 60Hz - 1 x HDMI 2.1, 4096x2160 @ 60Hz - Memoria compartida máxima de 16 GB |
Puertos E/S, Conectores | Internos - 1 x 24-pin ATX main power - 1 x 8-pin ATX 12V power - 4 x SATA 6Gb/s connectors - 2 x M.2 slots (M-Key) - 1 x USB 3.2 Gen 1 5Gbps Type-C - 1 x USB 3.2 Gen 1 5Gbps - 2 x USB 2.0 - 1 x 4-pin CPU fan - 1 x 4-pin water-pump fan - 3 x 4-pin system fan - 1 x Front panel audio - 2 x System panel - 1 x Serial port - 1 x Chassis Intrusion - 2 x 4-pin RGB LED - 2 x 3-pin RAINBOW LED - 1 x TPM module - 1 x Clear CMOS jumper Externos - VGA- USB 3.2 Gen 1 5Gbps Type-A - Keyboard / Mouse - LAN - Flash BIOS Button - DisplayPort - HDMI - USB 2.0 - USB 3.2 Gen 1 5Gbps Type-A - Wi-Fi Antenna connectors - 3x Audio jacks |
Otras Características | Almacenamiento - 8 x agujeros de montaje- 4 x SATA 6Gb/s - 2 x M.2 slots (Key M) RAID - Soporta RAID 0, RAID 1 y RAID 10 para dispositivos SATA - Soporta RAID 0 y RAID 1 para M.2 NVMe RAID USB - 3 x USB 3.2 Gen 1 - 6 x USB 2.0 - 4 x USB 3.2 Gen 1 5Gbps Red - 1 x Realtek® RTL8111HN Gigabit LAN Wi-Fi y Bluetooth - Admite Wi-Fi 802.11 a / b / g / n / ac, banda dual (2.4GHz, 5GHz) hasta una velocidad de 433 Mbps. - Admite Bluetooth de modo dual 2.1, 2.1 + EDR, 3.0, 4.0, BLE, 4.2 Audio - Realtek® ALC892 Codec - 7.1-Channel High Definition Audio Montaje |
| Fecha Revisión | 01-09-2020 por MSB |
